Fun With Shift Registers

A tutorial to help you understand how a shift register works.
Steps
  1. Overview
  2. Getting to know the 74HC164
  3. The Schematic
  4. Breadboard Schematic
  5. Step 1: The Regulator
  6. Step 2: Placing The IC
  7. Step 3: Input Button
  8. Step 4: Clock Button
  9. Step 5: Bit #1
  10. Step 6: Repeat
  11. Step 7: Bit 5
  12. Step 8: More Bits
Categories
DIY Projects, Learning Projects
Created by takide
Status: Active
7393af6088c4f20303cc19ad007f616e?s=30

Step 5: Bit #1 Step 9 of 12

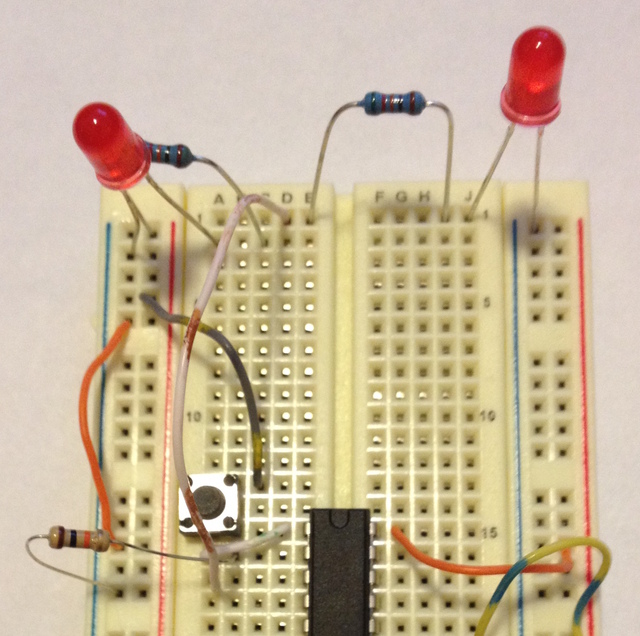

Now, get an LED and connect the negetive terminal to the ground rail on one side of the breadboard. (Remember: The negetive lead of an LED can easily be found by locating the flat side of the LED. The lead on the flat side of the LED is always negetive.) Connect the other lead of the LED to the breadboard as shown in the picture below. Then, connect a 560 Ohm resistor as shown in the picture below. Then connect the resistor to the Bit 1 output on the shift register as shown below:
