Fun With Shift Registers

A tutorial to help you understand how a shift register works.
Steps
  1. Overview
  2. Getting to know the 74HC164
  3. The Schematic
  4. Breadboard Schematic
  5. Step 1: The Regulator
  6. Step 2: Placing The IC
  7. Step 3: Input Button
  8. Step 4: Clock Button
  9. Step 5: Bit #1
  10. Step 6: Repeat
  11. Step 7: Bit 5
  12. Step 8: More Bits
Categories
DIY Projects, Learning Projects
Created by takide
Status: Active
7393af6088c4f20303cc19ad007f616e?s=30

Step 3: Input Button Step 7 of 12

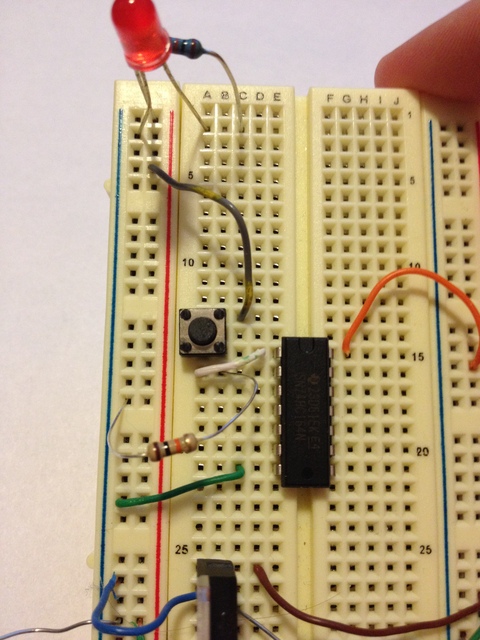

Afterwards, use a piece of wire to connect pin "A" and pin "B". This will make sure that both inputs are the same value. Now connect one lead of the push switch to input "A" and connect the other lead of the switch to the 5v rail. Next, connect a resistor from pin "B" to the ground rail. This resistor will make the defualt value of the inputs "0" or low. When the switch is pressed, it will make the inputs high or "1".
