Plan it out Step 2 of 8

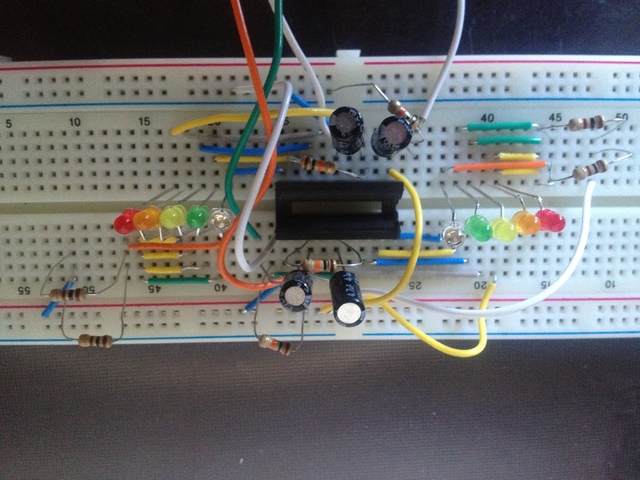

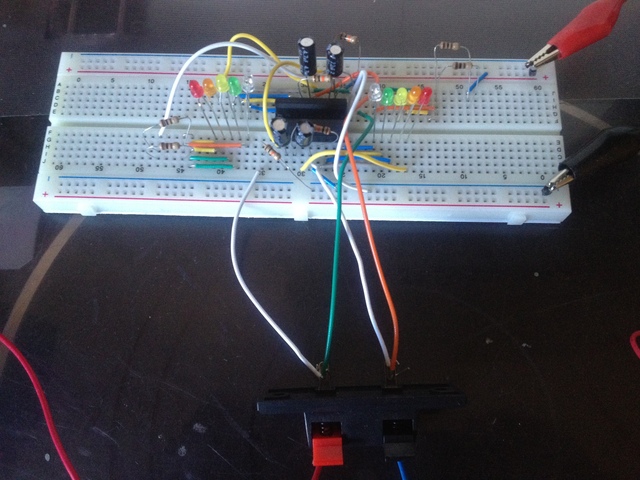

The first step is to plan out the circuit board and inventory the supply list. Since this one was easy and almost everything I needed was already in the Tayda Trio kit. I added a breadboard and some extra wire to the supply list which I used to quickly built this with a breadboard.


It made planning out the circuit on the strip board a bit easier to visualize it on th breadboard.
