Add the second IC Step 6 of 8

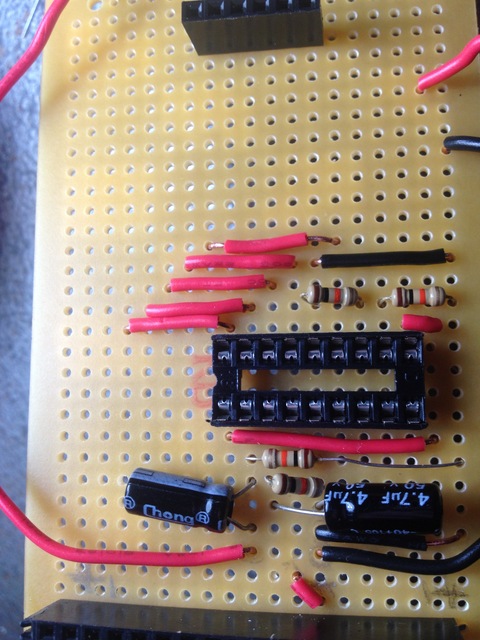

Add the connecting wires and resitors to the second IC circuit. The important thing is to remember that the IC goes from left to right, oppsite of the bottom IC.

Photo-5

I add the capacitors next. I fold them flat so the top board will fit.

Photo-6

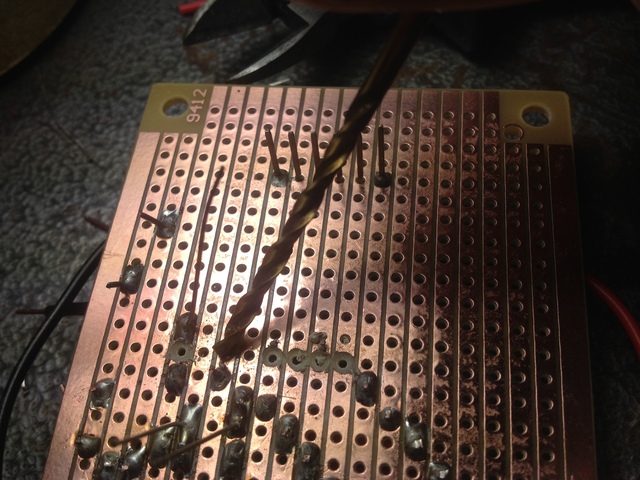

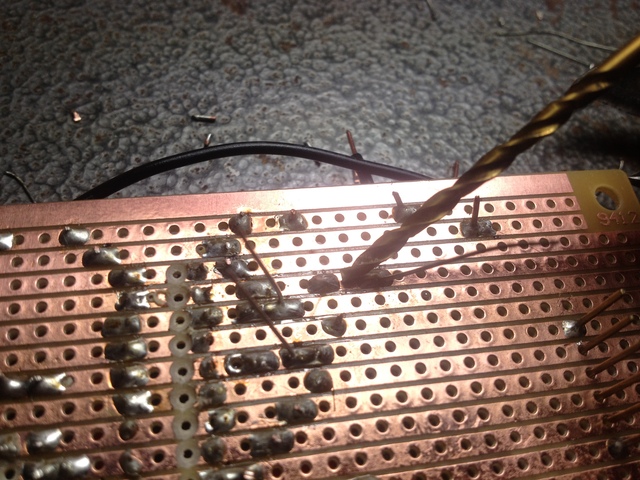

Don't forget to cut the strip between the capacitor on pin eight.


I like to cut the strips after all the led pin wires have been set so I can use the strips above them without worry.
