Part 1: Making the LED Matrix Step 3 of 5

  1. First, take the stripboard and solder the 27 Ohm and 56 Ohm resistors.
  2. Then, solder wires as shown in the picture below.
  3. After, solder the screw terminal into place.
  4. Lastly, solder the LED matrix into place. Make sure the pins are in the right places as shown in the picture below.

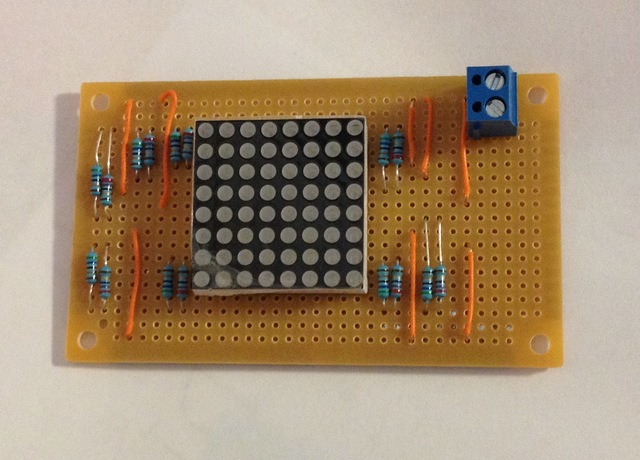

Here is what the finished LED bank should look like:



Rs-led2
