Red Strobe Light Step 1 of 5

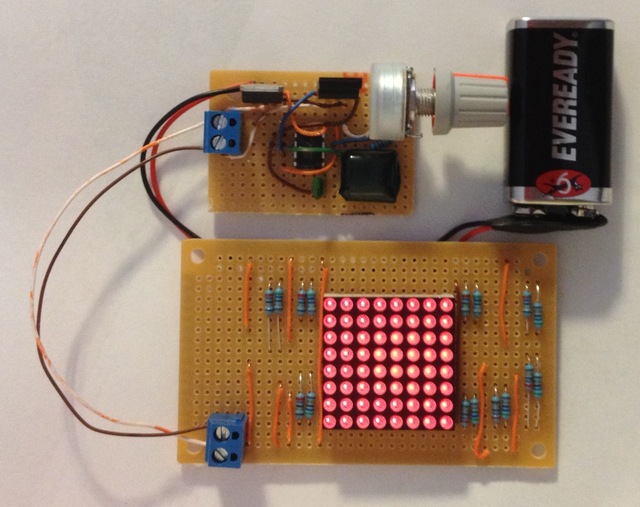

Rs-finished

This is a super simple, red LED strobe light circuit. This kit will be assembled in two parts: The flasher circuit, and the LED array. This way, you can attach other LED banks of your own, to make any colored strobe light you want!

Parts List:

Flasher Circuit:

  • (1) NE555 IC (A-249)
  • (1) 10nF Capacitor (A-4106)
  • (1) 0.47uF Capacitor (A-4127)
  • (1) N-Channel Mosfet 9A 200V (A-1450)
  • (1) 5V Regulator 1.5A (A-179)
  • (1) 100K Resistor (A-2071)
  • (2) 2 Position Screw Terminal (A-666)
  • (1) 200K Potentiometer (A-1950)
  • (1) Knob (Any will work)(A-325)
  • (1) 9V Battery Clip (A-656)

Led Array:

  • (1) 8X8 Dot Matrix LED Display Red Row Cathode  (A-1316)
  • (8) 27 Ohm Resistor (A-2618)
  • (8) 56 Ohm Resistor (A-2604)
