Sunn O))) Distortion

A simple distortion pedal based on the legandary "Sunn Model T" amplifier.
Steps

Created by Ákos Turi
Status: Active
Befe635d427d0c36f2a5554f5f651ce6?s=30

Sunn O))) Distortion Step 1 of 3

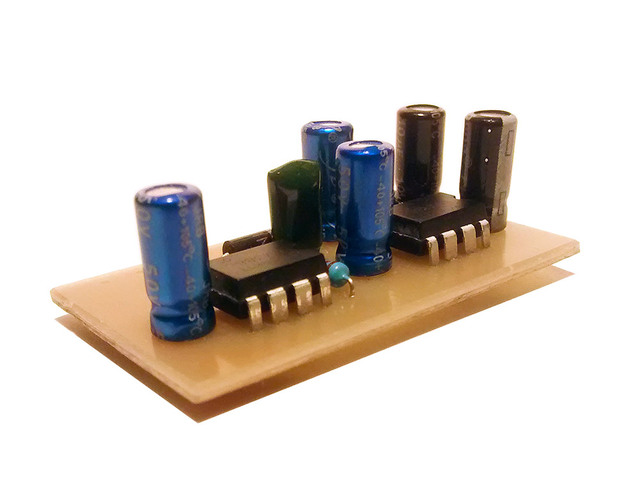

Sunn_distortion_pcb

Effect type

  • Power amp distortion

Pedal description

A simple distortion pedal based on the legandary "Sunn Model T" amplifier. Very-very loud and the best partner for doom, sludge and stoner music!

Controls

  • Level: controls the output level

Kit contents

IC
2x    LM386
Capacitors
1x    100uF
2x    10uF
1x    1uF
1x    4.7nF
Resistors
1x    1M
1x    68k
Diodes
1x    4001
Hardwares
1x    1590B enclosure
