Plexitone

This pedal can generate every tone you need. The Crunch channel provides from soft overdrive to hard rock distortion. The High Gain channel offers from rock gain stages to high-gain shred. Additionally a Boost will add extra volume to your pedal output.
Steps

Created by DHEA
Status: Active
Cfbfe5913a91eb0b73dda7d6f6ecab58?s=30

Plexitone Step 1 of 4

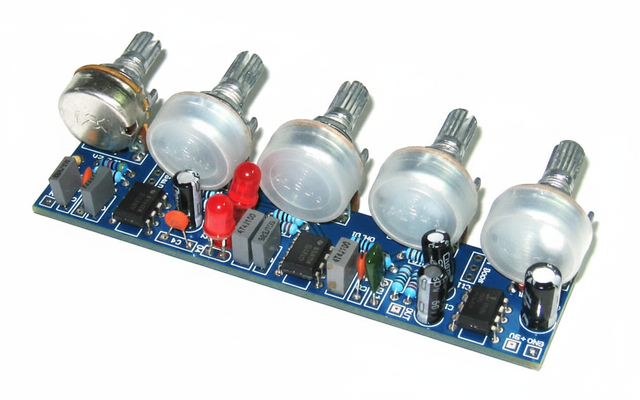

Dhd1_assembled

Effect type: distortion

Pedal description

This pedal can generate every tone you need. The Crunch channel provides from soft overdrive to hard rock distortion. The High Gain channel offers from rock gain stages to high-gain shred. Additionally a Boost will add extra volume to your pedal output. This DIY version operates with 9V. The pedal has a build in +/- 9V power supply, which will duplicate the headroom compared with a regular guitar pedal.

Controls

  • Volume: controls the overall output
  • Tone: controls the tone
  • Hi-gain: controls the gain of the Hi-gain channel
  • Crunch: controls the gain of the Crunch channel
  • Boost: controls the gain of the booster

Kit contents

Capacitors
2x    330PF 50V CERAMIC DISC CAPACITOR
1x    220NF 0.22UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x    33NF 0.033UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x    2.2UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
2x    470NF 0.47UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x    68NF 0.068UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x    22PF 50V CERAMIC DISC CAPACITOR
1x    100UF 35V 105C RADIAL ELECTROLYTIC CAPACITOR 6X11MM
2x    10UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
1x    1.5NF 0.0015UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
Potentiometers
1x    100K OHM LINEAR TAPER POTENTIOMETER
1x    5K OHM LINEAR TAPER POTENTIOMETER
1x    5K OHM LOGARITHMIC TAPER POTENTIOMETER
1x    100K OHM LOGARITHMIC TAPER POTENTIOMETER
1x    1M OHM LOGARITHMIC TAPER POTENTIOMETER
Diodes
7x    LED 3MM RED
1x    1N4739A 1N4739 ZENER DIODE 9.1V 1W
Ics
2x    TL072 LOW NOISE J-FET DUAL OP-AMP IC
1x    ICL7660CPAZ ICL7660 CMOS VOLTAGE CONVERTER IC
Resistors
1x    2.2M OHM 1/4W 1% METAL FILM RESISTOR
2x    1K OHM 1/4W 1% METAL FILM RESISTOR
1x    1M OHM 1/4W 1% METAL FILM RESISTOR
1x    47K OHM 1/4W 1% METAL FILM RESISTOR
1x    47 OHM 1/4W 1% METAL FILM RESISTOR
1x    2K OHM 1/4W 1% METAL FILM RESISTOR
1x    4.7K OHM 1/4W 1% METAL FILM RESISTOR
3x    22K OHM 1/4W 1% METAL FILM RESISTOR
1x    100 OHM 1/4W 1% METAL FILM RESISTOR
1x    10K OHM 1/4W 1% METAL FILM RESISTOR
3x    2.2K OHM 1/4W 1% METAL FILM RESISTOR
Hardware
1x    PLEXITONE DIY PCB GUITAR EFFECT
1x    1590BB STYLE ALUMINUM DIECAST ENCLOSURE
3X    3MM BEZEL LED HOLDER CHROME METAL
1x    9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x    DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x    6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x    6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
3X    3PDT STOMP FOOT / PEDAL SWITCH
5X    DAVIES 1510 CLONE BLACK KNOB
1x    AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 YELLOW HOOK-UP WIRE 1FT (30CM) STRANDED
