Les Lius

The LES LIUS simulates the sounds of the vintage Fender amps. It has a toggle switch that allows you to change tones from Tweed Fender Deluxe, High Power Twin and Master Volume. Also includes a footswitch to increase the gain and emulate the cracking of t
Steps

Created by DHEA
Status: Active
Cfbfe5913a91eb0b73dda7d6f6ecab58?s=30

Les Lius Step 1 of 4

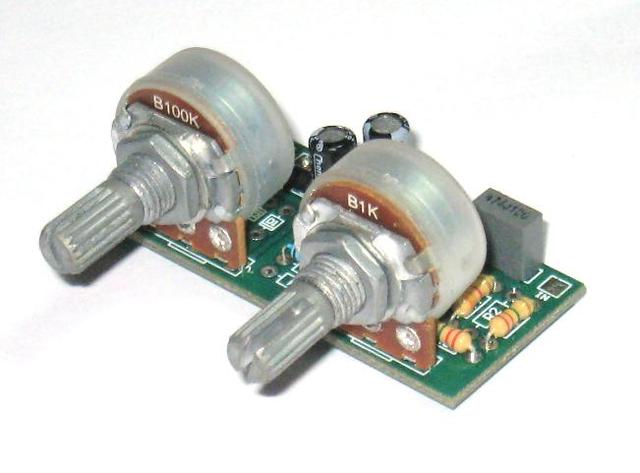

Dhb1_assembled

Effect type: overdrive

Pedal description

The LES LIUS simulates the sounds of the vintage Fender amps. It has a toggle switch that allows you to change tones from Tweed Fender Deluxe, High Power Twin and Master Volume. Also includes a second footswitch to increase the gain and emulate the cracking of these vintage amplifiers.

Controls

  • Volume: controls the overall output
  • Gain: controls the gain
  • Toggle switch: selects distortion type

Kit contents

Capacitors
1x    47NF 0.047UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
2x    100NF 0.1UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
2x    47UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 6X11MM
Diodes
2x    1N914 SMALL SIGNAL DIODE 200MA 100V
3x    BAT46 SHOTTKY BARRIER DIODE
2X    LED 3MM RED
Transistor
1x    2N5088 NPN GENERAL PURPOSE TRANSISTOR
Resistors
1x    1M OHM 1/4W 1% METAL FILM RESISTOR
1x    3.3M OHM 1/4W 1% METAL FILM RESISTOR
1x    3.3K OHM 1/4W 1% METAL FILM RESISTOR
1x    330 OHM 1/4W 1% METAL FILM RESISTOR
1x    1K OHM 1/4W 1% METAL FILM RESISTOR
2x    2.2K OHM 1/4W 1% METAL FILM RESISTOR
Potentiometers
1x    100K OHM LINEAR TAPER POTENTIOMETER
1x    1K OHM LINEAR TAPER POTENTIOMETER
Hardware
1x    ENGLISH MAN AND LES LIUS DIY PCB GUITAR EFFECT
1x    1590B STYLE ALUMINUM DIECAST ENCLOSURE
2x    3MM BEZEL LED HOLDER CHROME METAL
1x    9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x    DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x    6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x    6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
2x    3PDT STOMP FOOT / PEDAL SWITCH
1x    MINI TOGGLE SWITCH SPDT ON-OFF-ON
2x    DAVIES 1510 CLONE BLACK KNOB
1x    AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 BLUE HOOK-UP WIRE 1FT (30CM) STRANDED
