Footswitch 3PDT PCB Step 1 of 1

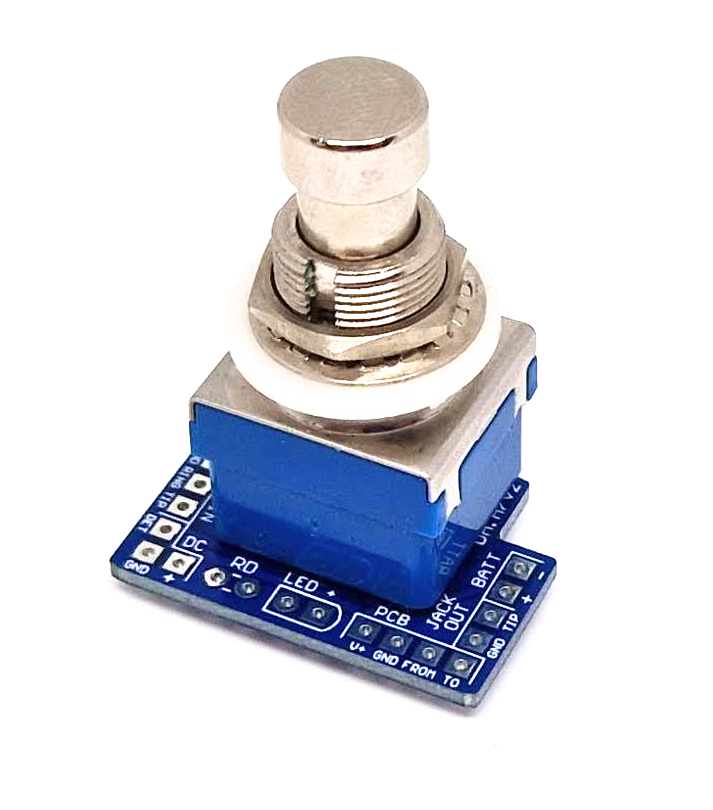

Dha7v2_12

This PCB simplifies wiring and helps you create a neat circuit with reduced noise. It also includes dedicated pads for the LED and its current-limiting resistor.

COMPONENT LIST

PCB                    3PDT FOOTSWITCH DIY PCB WIRING BOARD
RD                      3.3K OHM 1/4W 1% METAL FILM RESISTOR
LED                    LED 3MM GREEN
3PDT                  3PDT STOMP FOOT / PEDAL SWITCH
BATT                  9V VOLT BATTERY CLIP / CONNECTOR SNAP
JACK IN              6.35MM 1/4 JACK CHASSIS MONO
JACK OUT           6.35MM 1/4 JACK CHASSIS STEREO
DC                     DC POWER JACK 2.1MM



PCB





ASSEMBLY

Mount the footswitch directly on the PCB. The board includes pads for the LED and its current-limiting resistor (RD, 2.2k - 4.7k).



Mount the resistor in a vertical position as shown below.

WIRING

Wire the components as indicated in the following figure.





ENCLOSURE

The PCB fits in enclosures 1590A, 1590B, 1590BB…
