Box of Rock

The Box of Rock pedal emulates the JTM45 tone, a remarkable classic distortion sound. This pedal has very high headroom and you will be able to control the distortion tone by using your guitar volume knob.
Steps

Created by DHEA
Status: Active
Cfbfe5913a91eb0b73dda7d6f6ecab58?s=30

Box of Rock Step 1 of 4

Dhd2_assembled

Effect type: distortion

Pedal description

The Box of Rock pedal emulates the JTM45 tone, a remarkable classic distortion sound. This pedal has very high headroom and you will be able to control the distortion tone by using your guitar volume knob. Also, includes a boost stage based on the SHO that can be used independently from the distortion.

Controls

  • Volume: controls the overall output
  • Gain: controls the gain
  • Tone: controls the tone
  • Boost: controls the gain of the booster

Kit contents

Capacitors
3x    100NF 0.1UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
3x    22NF 0.022UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
4x    1NF 0.001UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x    470PF 50V CERAMIC DISC CAPACITOR
1x    1UF 100V 85C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
1x    10UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
1x    47UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 6X11MM
Diodes
1x    1N4001 DIODE 1A 50V
2x    1N4739A 1N4739 ZENER DIODE 9.1V 1W
2x    LED 3MM RED
Transistors
4x    BS170 BS170RLRAG MOSFET N-CHANNEL 60V 0.5A
Resistors
10x    1M OHM 1/4W 1% METAL FILM RESISTOR
4x    5.1K OHM 1/4W 1% METAL FILM RESISTOR
1x    470K OHM 1/4W 1% METAL FILM RESISTOR
1x    180 OHM 1/4W 1% METAL FILM RESISTOR
1x    330 OHM 1/4W 1% METAL FILM RESISTOR
2x    47K OHM 1/4W 1% METAL FILM RESISTOR
1x    82K OHM 1/4W 1% METAL FILM RESISTOR
2x    10K OHM 1/4W 1% METAL FILM RESISTOR
1x    82 OHM 1/4W 1% METAL FILM RESISTOR
2x    2.2K OHM 1/4W 1% METAL FILM RESISTOR
Potentiometers
2x    100K OHM LINEAR TAPER POTENTIOMETER
2x    5K OHM C5K 5KC ANTI-LOG TAPER POTENTIOMETER
Hardware

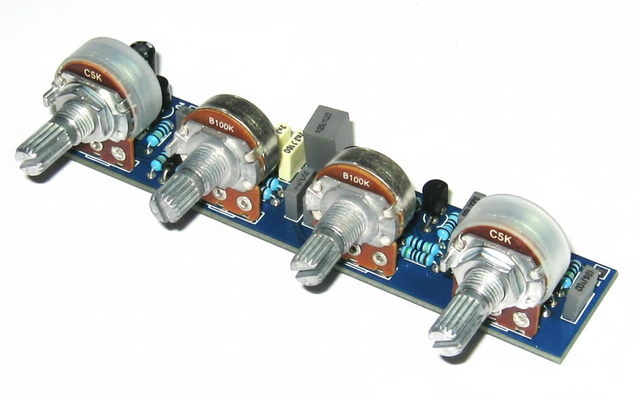

1x    BOX OF ROCK DIY PCB GUITAR EFFECT
1x    1590BB STYLE ALUMINUM DIECAST ENCLOSURE
2X    3MM BEZEL LED HOLDER CHROME METAL
1x    9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x    DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x    6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x    6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
2x    3PDT STOMP FOOT / PEDAL SWITCH
4x    DAVIES 1510 CLONE BLACK KNOB
1x    AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 YELLOW HOOK-UP WIRE 1FT (30CM) STRANDED
