Connecting The Boards Step 5 of 5

Now it is time to connect the LED Matrix and the flasher circuit together!

Strip some wires and connect one from the negetive terminal of the flasher to the negetive terminal on the LED matrix. Then connect the positive wire.

Now put the knob on the potentiometer. Then plug in the 9v battery and watch the strobe flash!

You can adjust how fast it flashes by turning the potentiometer.

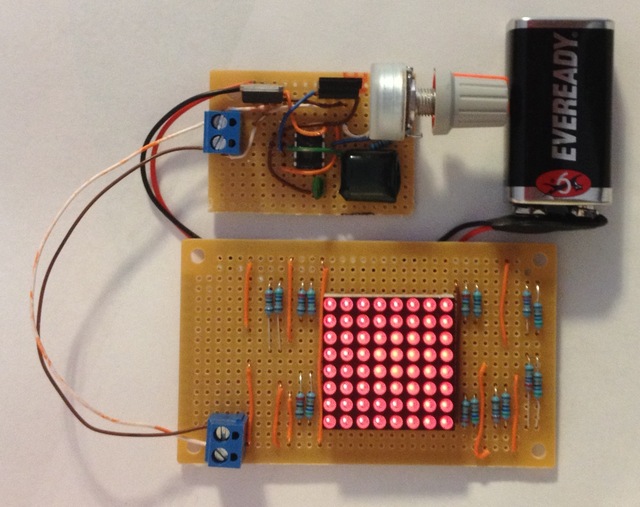

Rs-finished
