Mini Guitar Amp Step 1 of 7

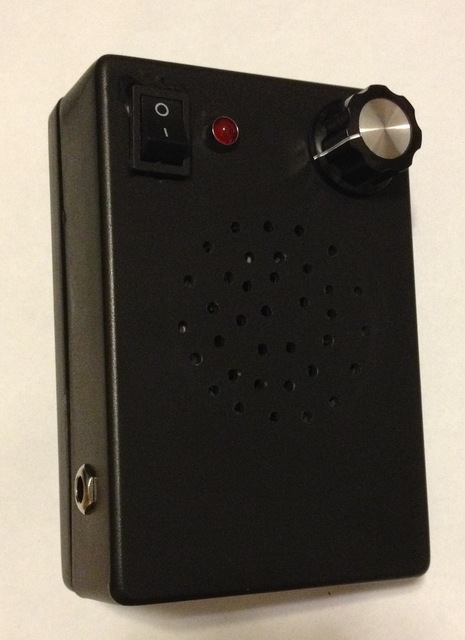

Amp-finished

In this kit you will build an awesome, mini guitar amp! The main component of this project will be the LM386 audio amplifier IC powered by a 9v battery. This portable guitar amp has an On/Off switch, and LED light, a volume control knob, and an awesome sound!

Parts List:

Circuit:

  • (1) LM386 IC (A-206)
  • (1) 10uF Capacitor (A-4548)
  • (1) 220uF Capacitor (A-4543)
  • (1) 22uF Capacitor (A-4530)
  • (2) 0.047uF Capacitor (A-4127)
  • (1) 470 Ohm Resistor (A-2049)
  • (1) 10K Ohm Potentiometer (A-1897)
  • (1) Red 5mm LED (A-1554)
  • (1) 1w Speaker (A-4117)
  • (1) 9v Battery Clip (A-656)

Hardware:

  • (1) 6.35mm Socket - Solder Lug Type (A-1123)
  • (1) 5mm LED Holder (A-660)
  • (1) Boss Style Knob (A-1006)
  • (1) Plastic Project Box 4 (A-2392)
  • (1) Black Rocker Switch (A-5091)
