Les Lius

The LES LIUS emulates the sounds of the vintage Fender amps. It has a toggle switch that allows you to change tones from Tweed Fender Deluxe, High Power Twin and Master Volume.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Drilling template Step 5 of 5

Choose an enclosure (www.taydaelectronics.com/hardware/enclosures.html), use the drill service (www.taydaelectronics.com/hardware/enclosures/enclosure-custom-drill-service.html) and the UV printing service (www.taydaelectronics.com/hardware/enclosures/enclosure-uv-printing-service.html).

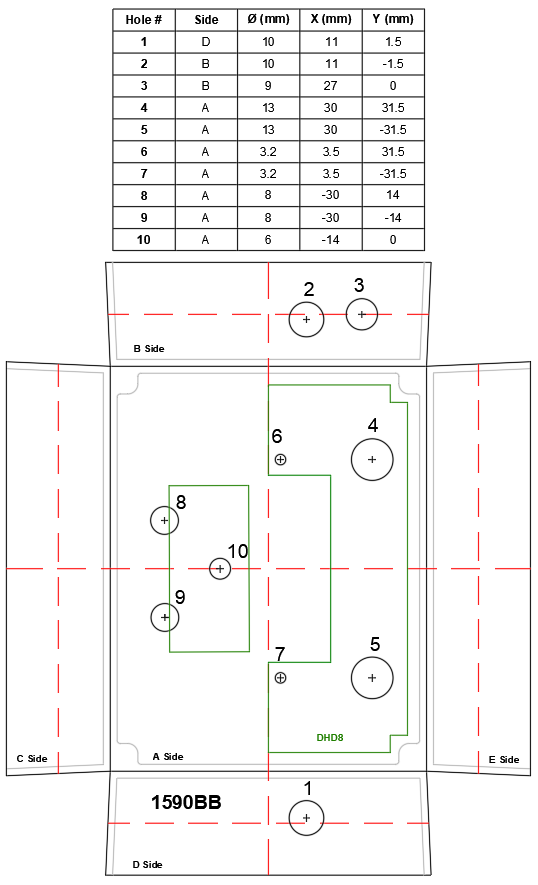

Add the coordenates from the following table in drill.taydakits.com. The holes #1 to #7 are for the 1590BB enclosure PCB.



Adjust the diameter of hole #3 for the DC connector (9 mm works for most of the connectors).

Adjust the diameter of hole #5 for the LED as follows (for painted enclosures):

  • 3 mm LED: 3.2 mm
  • 3 mm LED metal holder: 6 mm
  • 5 mm LED: 5.2 mm
  • 5 mm transparent holder: 6.5 mm
