English Man

This pedal emulates a VOX AC amplifier working at the limit. It has the ability to work as a clean boost or an overdrive depending on the volume and gain control, offering a great dynamic response and open sound.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Enclosure drilling
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Enclosure drilling Step 5 of 5

Choose an enclosure (www.taydaelectronics.com/hardware/enclosures.html), use the drill service (www.taydaelectronics.com/hardware/enclosures/enclosure-custom-drill-service.html) and the UV printing service (www.taydaelectronics.com/hardware/enclosures/enclosure-uv-printing-service.html).

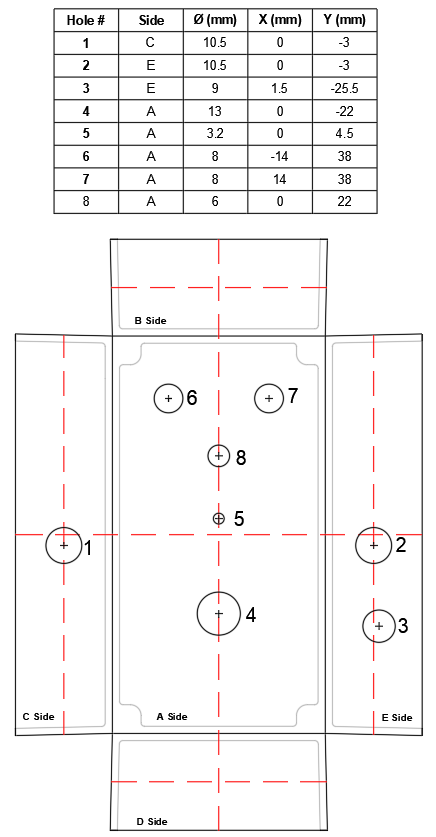

Add the coordenates from the following table in drill.taydakits.com. The holes #1 to #5 are for the 1590B enclosure PCB.

Adjust the diameter of hole #3 for the DC connector (9 mm works for most of the connectors).

Adjust the diameter of hole #5 for the LED as follows (for painted enclosures):

  • 3 mm LED: 3.2 mm
  • 3 mm LED metal holder: 6 mm
  • 5 mm LED: 5.2 mm
  • 5 mm transparent holder: 6.5 mm
