Big Muff
This is the legendary Big Muff! This unique fuzz distortion pedal provides rich harmonics and a huge dose of sustain.Steps
Categories
Status: Active
Designators and components Step 2 of 5
COMPONENT LIST (Big Muff 3rd Edition)

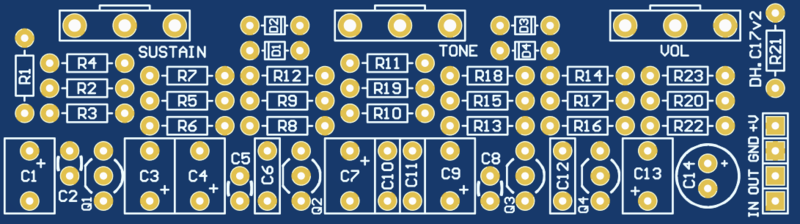

PCB
BIG MUFF DIY PCB GUITAR EFFECT
Resistors
R1 1M 1M OHM 1/4W 1% METAL FILM RESISTOR
R2 39k 39K OHM 1/4W 1% METAL FILM RESISTOR
R3 100k 100K OHM 1/4W 1% METAL FILM RESISTOR
R4 470k 470K OHM 1/4W 1% METAL FILM RESISTOR
R5 15k 15K OHM 1/4W 1% METAL FILM RESISTOR
R6 100 100 OHM 1/4W 1% METAL FILM RESISTOR
R7 1k 1K OHM 1/4W 1% METAL FILM RESISTOR
R8 8.2k 8.2k OHM 1/4W 1% METAL FILM RESISTOR
R9 100k 100K OHM 1/4W 1% METAL FILM RESISTOR
R10 470k 470K OHM 1/4W 1% METAL FILM RESISTOR
R11 15k 15K OHM 1/4W 1% METAL FILM RESISTOR
R12 100 100 OHM 1/4W 1% METAL FILM RESISTOR
R13 8.2k 8.2K OHM 1/4W 1% METAL FILM RESISTOR
R14 100k 100K OHM 1/4W 1% METAL FILM RESISTOR
R15 470k 470K OHM 1/4W 1% METAL FILM RESISTOR
R16 15k 15K OHM 1/4W 1% METAL FILM RESISTOR
R17 100 100 OHM 1/4W 1% METAL FILM RESISTOR
R18 39k 39K OHM 1/4W 1% METAL FILM RESISTOR
R19 100k 100K OHM 1/4W 1% METAL FILM RESISTOR
R20 390k 390K OHM 1/4W 1% METAL FILM RESISTOR
R21 100k 100K OHM 1/4W 1% METAL FILM RESISTOR
R22 10k 10K OHM 1/4W 1% METAL FILM RESISTOR
R23 2.2k 2.2k OHM 1/4W 1% METAL FILM RESISTOR
Capacitors
C1 100n 100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C2 470p 470PF 50V CERAMIC DISC CAPACITOR
C3 1u 1UF 50V ELECTROLYTIC CAPACITOR 5X11MM
C4 1u 1UF 50V ELECTROLYTIC CAPACITOR 5X11MM
C5 470p 470PF 50V CERAMIC DISC CAPACITOR
C6 100n 100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C7 1u 1UF 50V ELECTROLYTIC CAPACITOR 5X11MM
C8 470p 470PF 50V CERAMIC DISC CAPACITOR
C9 100n 100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C10 3.9n 3.9NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C11 10n 10NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C12 100n 100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C13 100n 100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C14 100u 100UF 35V ELECTROLYTIC CAPACITOR 6X11MM
Transistors
Q1 2N5088 2N5088 GEReNAL PURPOSE TRANSISTOR
Q2 2N5088 2N5088 GEReNAL PURPOSE TRANSISTOR
Q3 2N5088 2N5088 GEReNAL PURPOSE TRANSISTOR
Q4 2N5088 2N5088 GEReNAL PURPOSE TRANSISTOR
Transistor equivalents: 2N5089, BC549C, BC239 , 2N5210...
Diodes
D1 1N4148 1N4148 SWITCHING SIGNAL DIODE
D2 1N4148 1N4148 SWITCHING SIGNAL DIODE
D3 1N4148 1N4148 SWITCHING SIGNAL DIODE
D4 1N4148 1N4148 SWITCHING SIGNAL DIODE
Potentiometers
SUSTAIN 100K-A 100K ohm LOG potentiometer
VOL 100K-A 100K OHM LOG POTENTIOMETER
TONE 100K-B 100K OHM LINEAR POTENTIOMETER
SEVERAL BIG MUFF VERSIONS
PCB
PCB SCHEMATIC
GENERAL DESCRIPTION OF COMPONENTS
Resistors
The resistors should be ¼ Watt metal type. You can either use a multimeter or the color bands to obtain their values. Resistors do not have polarity, you can place them in any direction.
Electrolytic capacitors
Electrolytic capacitors have their value printed on them. The negative polarity pin is indicated by a white strip along the can. They also have a longer leg indicating the positive pin. The maximum voltage rating never can be exceeded, make sure you are using at least double voltage rating than your power supply. For example, if you are using a 9V power supply, use a electrolytic capacitor with at least 18V maximum voltage rating.
Polyester capacitors
The polyester capacitors have their value marked with three numbers. Read as picofarads (pF), the first two are the 1st and 2nd digits and the third is the multiplier code. These capacitors do not have polarity, you can place them in any direction.
Ceramic capacitors
The ceramic capacitors have their value marked with three numbers. Read as picofarads (pF), the first two are the 1st and 2nd digits and the third is the multiplier code. These capacitors do not have polarity, you can assemble them in any direction.
Diodes
Diodes have their model printed on them. The polarity (cathode) is indicated by the ring near the side. This ring is also marked on the PCB.
Led diodes
Led diodes have polarity, the cathode is indicated as a flat surface on the side of the diode and also it is the shorter led. On the PCB, the cathode is marked as a flat side and anode as a round side.
Transistors
Transistors are three terminals components and their model is printed on them. To indicate the correct orientation, one side of the transistor is flat and the other one is round.
Potentiometers
Potentiometers have their resistance value marked on them. They are marked with A, B or C for logarithmic, linear and reverse logarithmic, respectively.
