White Strobe Light

An Ultra-Bright White LED Strobe Light
Steps
  1. Overview
  2. Schematics & Info
  3. Part 1: Making the LED Array
  4. Part 2: Building the Flasher
  5. Part 3: Connecting The Boards
Categories
DIY Projects, Learning Projects
Created by takide
Status: Active
7393af6088c4f20303cc19ad007f616e?s=30

Part 3: Connecting The Boards Step 5 of 5

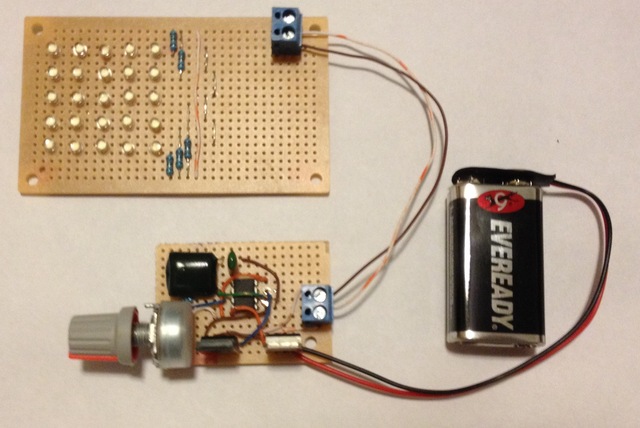

Now it is time to connect the LED Array and the flasher circuit together!

Strip some wires and connect one from the negetive terminal of the flasher to the negetive terminal on the LED array. Then connect the positive wire.

Now put the knob on the potentiometer. Then plug in the 9v battery and watch the strobe flash!

You can adjust how fast it flashes by turning the potentiometer.
